MON-39 £296.00
9" Quad screen monitor with built-in digital video recorder (DVR), and RCA/phono connectors
Features:
Screen Ratio: 16:9
Black Light Luminance: LED, 300cd/㎡
Resolution: 800xRGBx480
Compatible system: NTSC & PAL (automatically)
OSD control: Color, Brightness, Contrast, Volume, Language
(English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese)
View angle: Hor. L(70) R(70) Ver. UP(50) DOWN(70)
Image reversion: UP/Down and Left/Right
Power requirement: 12V-24v DC
Power consumption: <8W
Shockproof level:4G
Storage temperature: -30℃ to 80℃
Working temperature: -20℃ to 70℃
AV Inputs: 4 ways video input,4 ways audio input,1 way video output
Number of Trigger and display: 4 trigger
4 Channel display for reversing, Full image/2 images/4 images adjustable.
RCA connectors
Black Light Luminance: LED, 300cd/㎡
Resolution: 800xRGBx480
Compatible system: NTSC & PAL (automatically)
OSD control: Color, Brightness, Contrast, Volume, Language
(English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese)
View angle: Hor. L(70) R(70) Ver. UP(50) DOWN(70)
Image reversion: UP/Down and Left/Right
Power requirement: 12V-24v DC
Power consumption: <8W
Shockproof level:4G
Storage temperature: -30℃ to 80℃
Working temperature: -20℃ to 70℃
AV Inputs: 4 ways video input,4 ways audio input,1 way video output
Number of Trigger and display: 4 trigger
4 Channel display for reversing, Full image/2 images/4 images adjustable.
RCA connectors
Other features
Built-in speaker
Monitor controlled by button panel
Key color: Black rubber oil, radium carving, through blue light

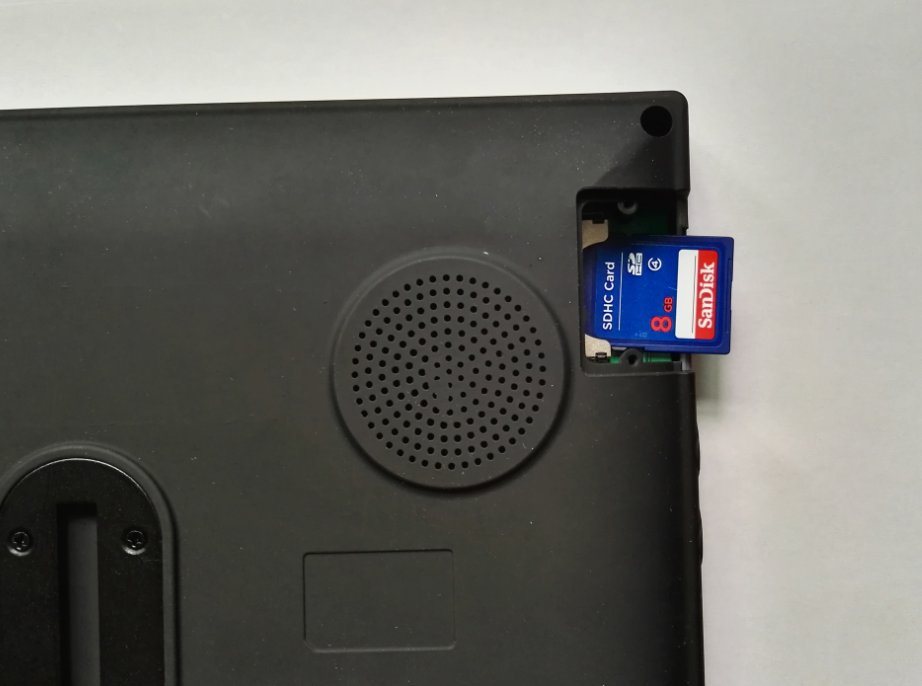

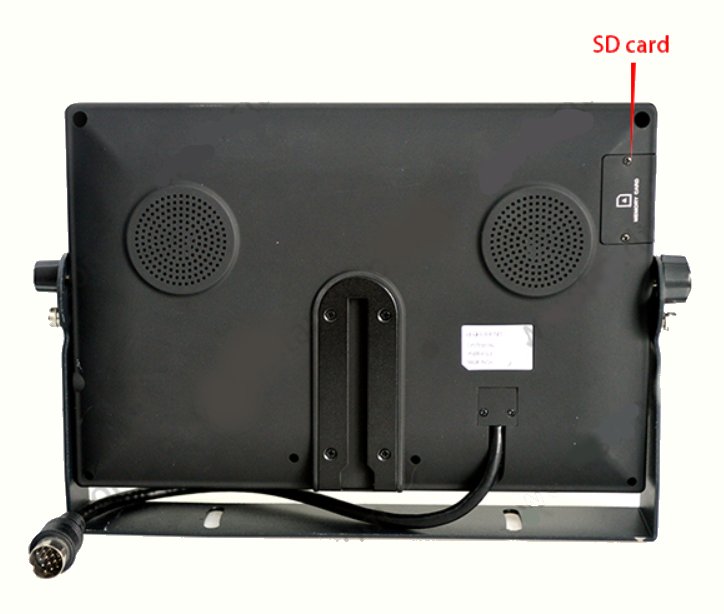

Memory interface: 1 SD Interface
SD carder support: Max 32GB
DVR image quality: DVR recording 4 channels video signal, VGA resolution:640*480
Recording speed:60FPS
Storage format: AVI
Monitor controlled by button panel
Key color: Black rubber oil, radium carving, through blue light
Memory interface: 1 SD Interface
SD carder support: Max 32GB
DVR image quality: DVR recording 4 channels video signal, VGA resolution:640*480
Recording speed:60FPS
Storage format: AVI

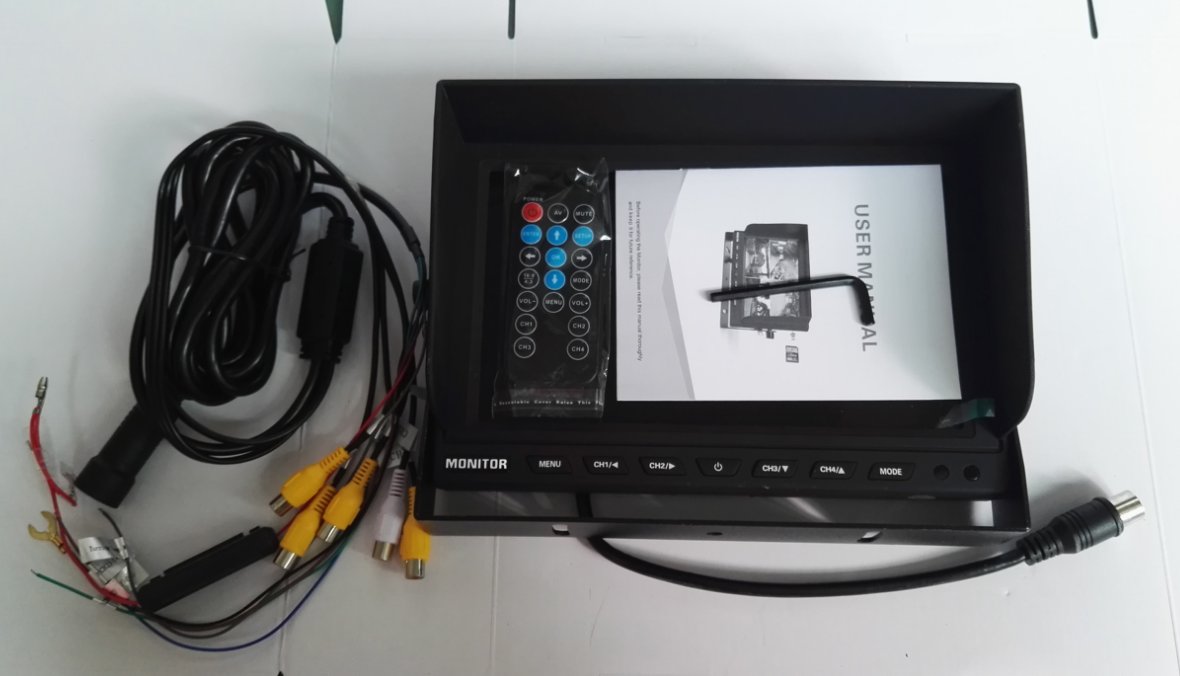

Accessories
Remote controller, Power supply cable , User manual, Bracket
MON-39 £296.00
